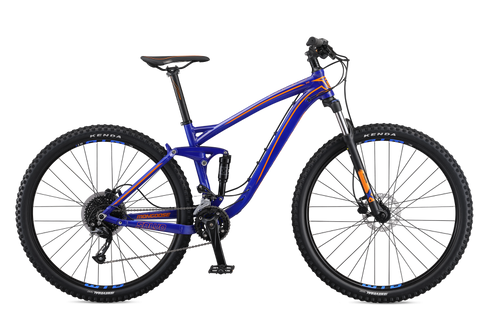

The Salvo is uniquely tuned to offer a plush ride through rugged XC terrain. Our adapted free floating Horst-Link suspension limits pedal feedback conserving riders’ energy making it easy to take on more miles.
Frame: Tectonic T2, aluminum, 29” trail geometry, rocker link suspension, internal cable routing, 9 mm x 141 mm QR dropout convertible to 12 mm x 148 mm thru axle, replaceable hanger, tapered headtube, 110 mm travel
Fork: Xposure, 29”, steel steerer, mechanical lockout, 9 mm x 100 mm, QR, 100 mm travel
Crank: Aluminum, 36/22T
Chain: KMC Z99
Bottom Bracket: VP, cartridge, 3-piece, threaded 73 mm shell
Shifters: Shimano Altus SL-2000, 2 x 9
Rear Cog: Sunrace, 9-speed, 11-40T
Front Derailleur: Shimano FD-M4020, side swing, direct mount
Rear Derailleur: Shimano Altus RD-M2000
Rims: WTB ST-i29, aluminum double wall, 29 mm ID, 32H, tubeless compatible
Front Hub: Xposure, aluminum, ball bearing, 9 mm x 110 mm, 32H, 6-bolt
Rear Hub: Xposure, aluminum, ball bearing, 9 mm x 141 mm QR, 32H, 6-bolt
Spokes: 14G, stainless steel
Tyres: Kenda Nevegal, 29 in x 2.25 in, wire bead
Pedals: Mongoose, nylon
Brakes: Tektro HD-M290, hydraulic, aluminum, 160 mm rotor
Handlebar: Xposure, double-butted aluminum, 760 mm width, 15 mm rise, 31.8 mm clamp
Stem: Xposure 3D forged aluminum, threadless, 60 mm, 6°, 31.8 mm clamp
Headset: Threadless, ZS44/ZS56, retainer bearing
Seat Post: Xposure, aluminum, 350 mm, zero offset, 31.6 mm
Saddle: Mongoose MTB, steel rails
Grips: Xposure dual density, semi-ergo
